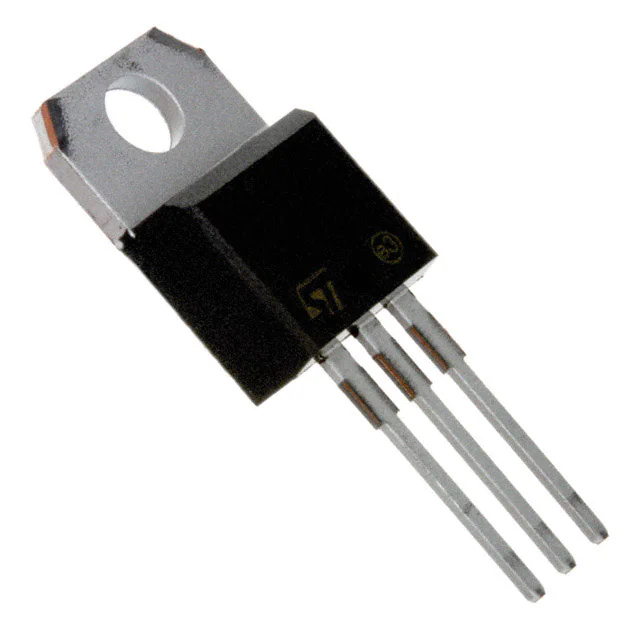

| Part Number | T1610T-8I | T1620T-8I | T1610T-8T | T1610T-6I | T1610T-8G |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Obsolete | Active |
| Triac Type | Logic - Sensitive Gate | Alternistor - Snubberless | Logic - Sensitive Gate | Logic - Sensitive Gate | Logic - Sensitive Gate |
| Voltage - Off State | 800 V | 800 V | 800 V | 600 V | 800 V |
| Current - On State (It (RMS)) (Max) | 16 A | 16 A | 16 A | 16 A | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 120A, 126A | 120A, 126A | 120A, 126A | 120A, 126A | 120A, 126A |
| Current - Gate Trigger (Igt) (Max) | 10 mA | 20 mA | 10 mA | 10 mA | 10 mA |
| Current - Hold (Ih) (Max) | 25 mA | 25 mA | 15 mA | 12 mA | 25 mA |
| Configuration | Single | Single | Single | Single | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-220AB Insulated | TO-220 | TO-220 | TO-220AB Insulated | D²PAK |
