Please send RFQ , we will respond immediately.
| Part Number | STWA75N60DM6 | STWA75N60M6 | STW75N60DM6 | STWA65N60DM6 | STWA70N60DM6 |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 72A (Tc) | 72A (Tc) | 72A (Tc) | 38A (Tc) | 62A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V | - | - | - |
| Rds On (Max) @ Id, Vgs | - | 36mOhm @ 36A, 10V | - | - | - |
| Vgs(th) (Max) @ Id | - | 4.75V @ 250µA | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | - | 106 nC @ 10 V | - | - | - |
| Vgs (Max) | - | ±25V | - | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | - | 4850 pF @ 100 V | - | - | - |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | - | 446W (Tc) | - | - | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

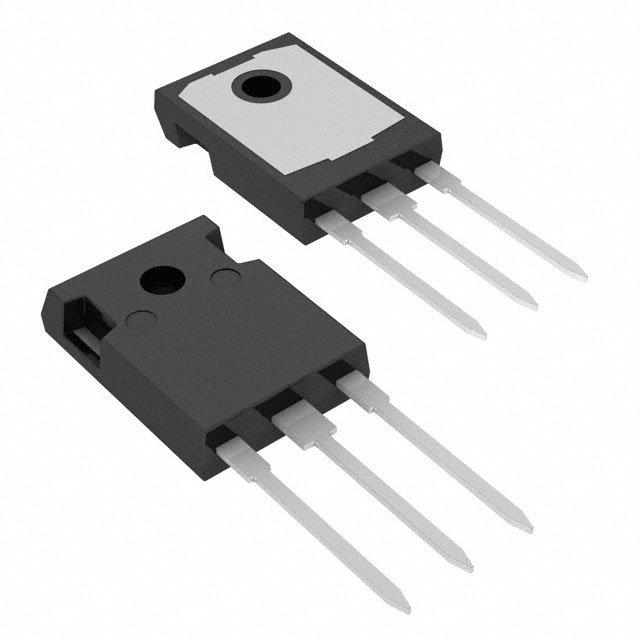

| Supplier Device Package | TO-247 Long Leads | TO-247 Long Leads | TO-247-3 | TO-247 Long Leads | TO-247 Long Leads |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
