| Part Number | STW6N95K5 | STW6N90K5 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 950 V | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) | 6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1.25Ohm @ 3A, 10V | 1.1Ohm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 100µA | 5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V | - |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 450 pF @ 100 V | - |
| FET Feature | - | - |
| Power Dissipation (Max) | 90W (Tc) | 110W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

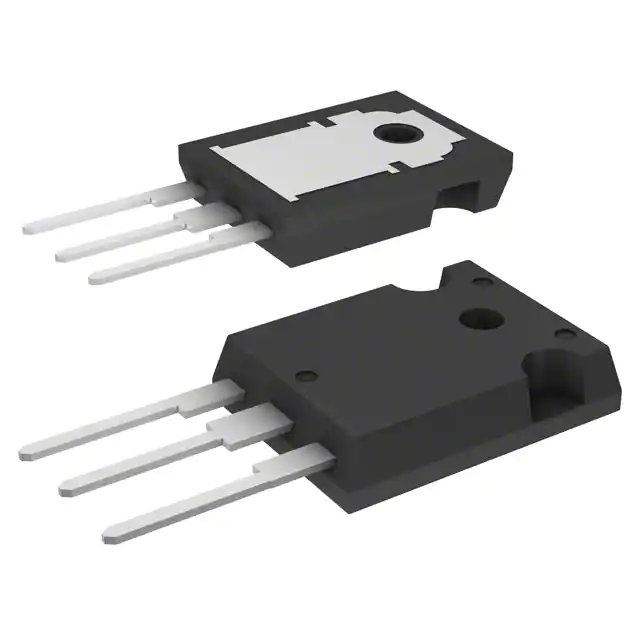

| Supplier Device Package | TO-247-3 | TO-247 |
| Package / Case | TO-247-3 | TO-247-3 |
