STMicroelectronics-STW68N65DM6-4AG - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	72A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	39mOhm @ 36A, 10V
Vgs(th) (Max) @ Id:	4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	118 nC @ 10 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	5900 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	480W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247-4
Package / Case:	TO-247-4

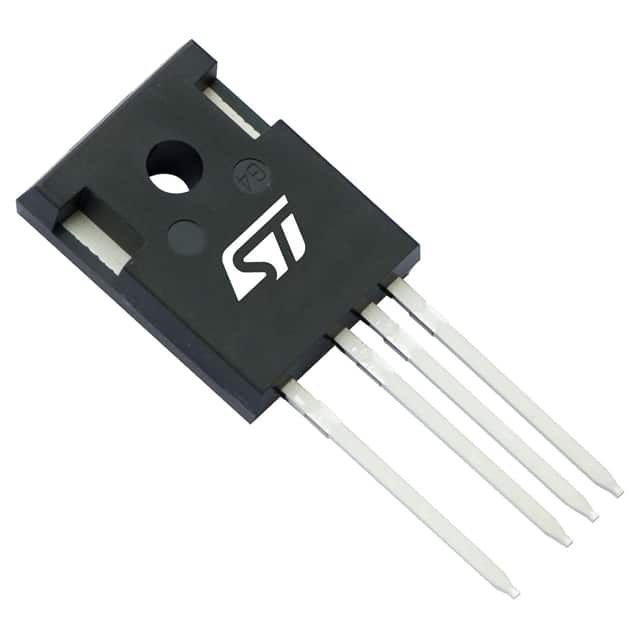

STMicroelectronics STW68N65DM6-4AG
