| Part Number | STW48NM60N | STW43NM60N |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 44A (Tc) | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 20A, 10V | 88mOhm @ 17.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 124 nC @ 10 V | 130 nC @ 10 V |
| Vgs (Max) | ±25V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 4285 pF @ 50 V | 4200 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 330W (Tc) | 255W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

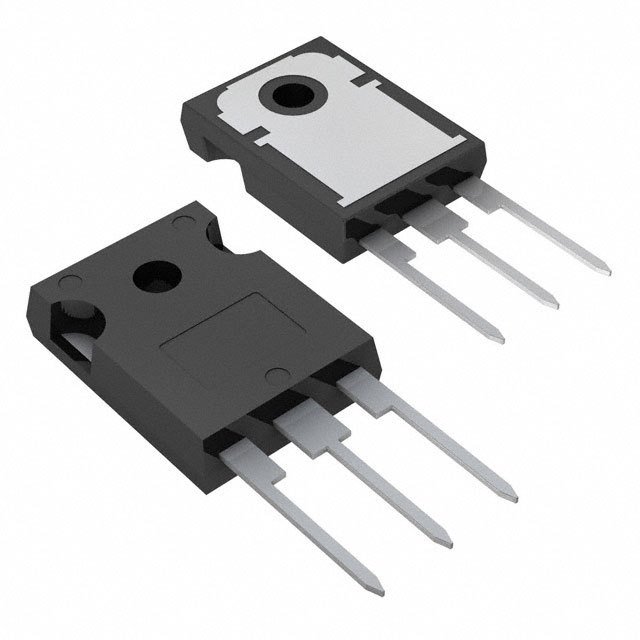

| Supplier Device Package | TO-247-3 | TO-247-3 |
| Package / Case | TO-247-3 | TO-247-3 |
