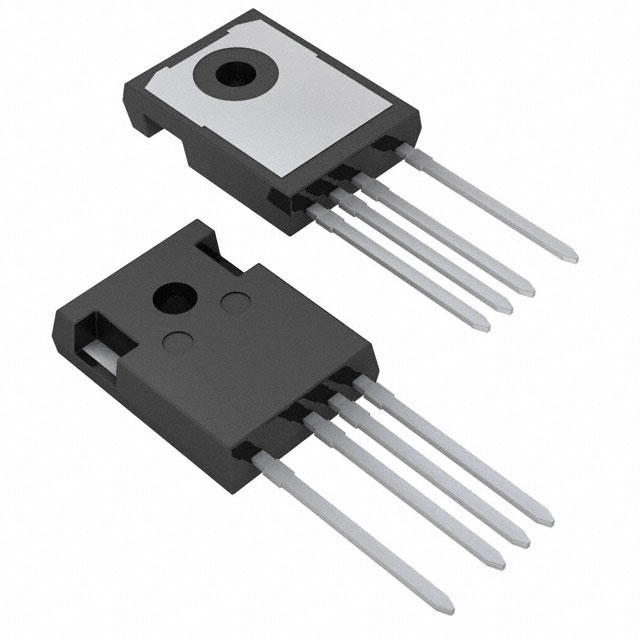

| Part Number | STW48N60M2-4 | STW48N60M6-4 | STW40N60M2-4 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 42A (Tc) | 39A (Tc) | 34A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 21A, 10V | 69mOhm @ 19.5A, 10V | 88mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4.75V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 10 V | 57 nC @ 10 V | 57 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 3060 pF @ 100 V | 2578 pF @ 100 V | 2500 pF @ 100 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 300W (Tc) | 250W (Tc) | 250W (Tc) |
| Operating Temperature | 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-247-4 | TO-247-4 | TO-247-3 |
| Package / Case | TO-247-4 | TO-247-4 | TO-247-3 |
