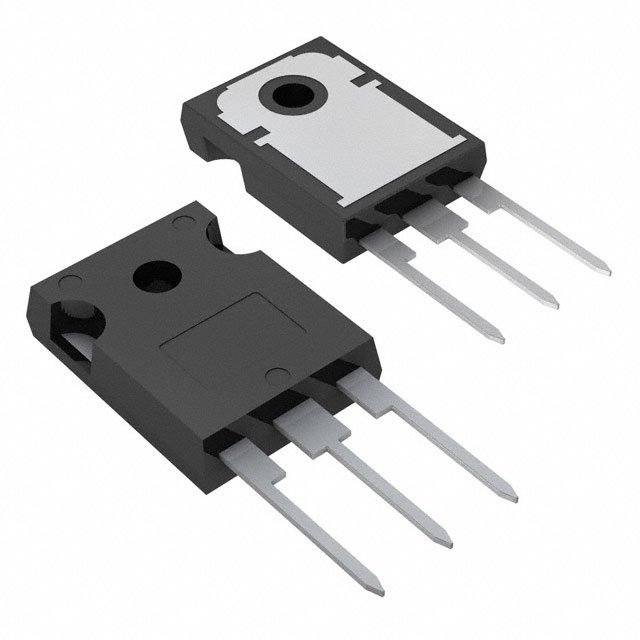

| Part Number | STW28NK60Z | STW18NK60Z |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 27A (Tc) | 16A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 185mOhm @ 13.5A, 10V | 360mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 150µA | 4.5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 264 nC @ 10 V | 170 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 6350 pF @ 25 V | 3540 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 350W (Tc) | 230W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-247-3 | TO-247-3 |
| Package / Case | TO-247-3 | TO-247-3 |
