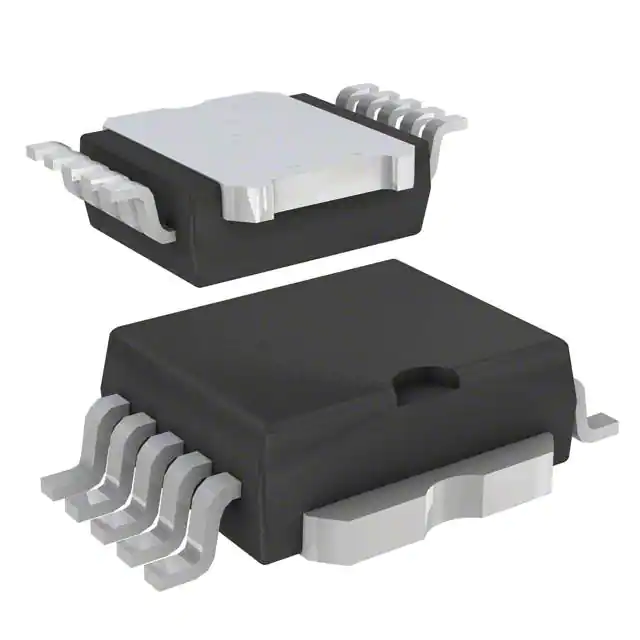

| Part Number | STV160NF02LT4 | STV160NF03LT4 | STV160NF02LAT4 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 30 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 160A (Tc) | 160A (Tc) | 160A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 5V, 10V | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 80A, 10V | 2.8mOhm @ 80A, 10V | 2.7mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 160 nC @ 10 V | 140 nC @ 10 V | 175 nC @ 10 V |
| Vgs (Max) | ±15V | ±15V | ±15V |
| Input Capacitance (Ciss) (Max) @ Vds | 4800 pF @ 15 V | 4700 pF @ 25 V | 5500 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 210W (Tc) | 210W (Tc) | 210W (Tc) |
| Operating Temperature | 175°C (TJ) | 175°C (TJ) | 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 10-PowerSO | 10-PowerSO | 10-PowerSO |
| Package / Case | PowerSO-10 Exposed Bottom Pad | PowerSO-10 Exposed Bottom Pad | PowerSO-10 Exposed Bottom Pad |
