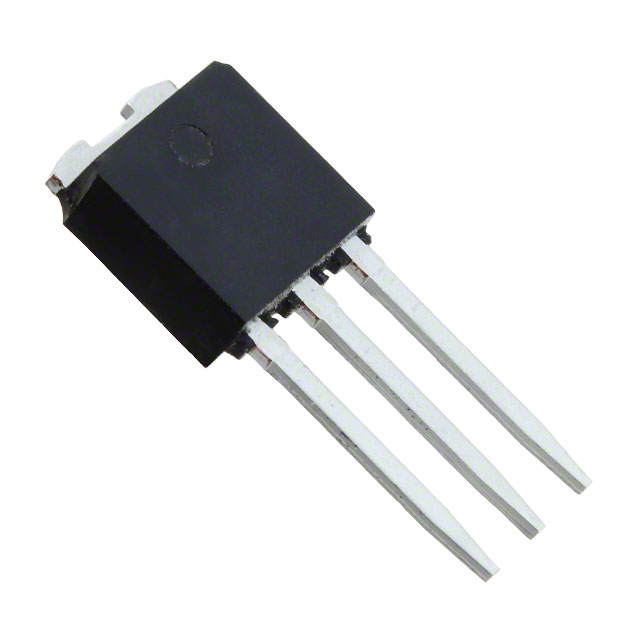

| Part Number | STU3N62K3 | STU4N62K3 | STU6N62K3 | STU5N62K3 | STU2N62K3 | STU3LN62K3 |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 620 V | 620 V | 620 V | 620 V | 620 V | 620 V |
| Current - Continuous Drain (Id) @ 25°C | 2.7A (Tc) | 3.8A (Tc) | 5.5A (Tc) | 4.2A (Tc) | 2.2A (Tc) | 2.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 1.4A, 10V | 2Ohm @ 1.9A, 10V | 1.2Ohm @ 2.8A, 10V | 1.6Ohm @ 2.1A, 10V | 3.6Ohm @ 1.1A, 10V | 3Ohm @ 1.25A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 50µA | 4.5V @ 50µA | 4.5V @ 50µA | 4.5V @ 50µA | 4.5V @ 50µA | 4.5V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V | 22 nC @ 10 V | 30 nC @ 10 V | 26 nC @ 10 V | 15 nC @ 10 V | 17 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 385 pF @ 25 V | 550 pF @ 50 V | 875 pF @ 50 V | 680 pF @ 50 V | 340 pF @ 50 V | 386 pF @ 50 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 45W (Tc) | 70W (Tc) | 90W (Tc) | 70W (Tc) | 45W (Tc) | 45W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | TO-251 (IPAK) | TO-251 (IPAK) | TO-251 (IPAK) | TO-251 (IPAK) | TO-251 (IPAK) |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
