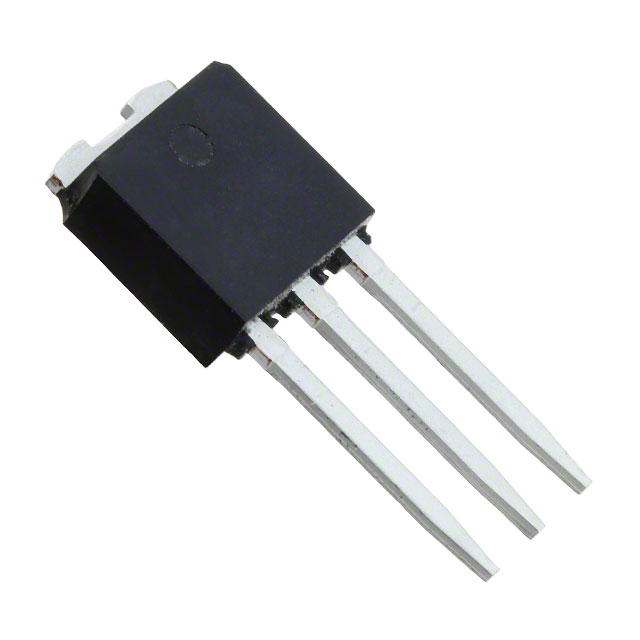

| Part Number | STU2N105K5 | STU7N105K5 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1050 V | 1050 V |
| Current - Continuous Drain (Id) @ 25°C | 1.5A (Tc) | 4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 8Ohm @ 750mA, 10V | 2Ohm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 100µA | 5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V | 17 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 115 pF @ 100 V | 380 pF @ 100 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 60W (Tc) | 110W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-251 (IPAK) | IPAK (TO-251) |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
