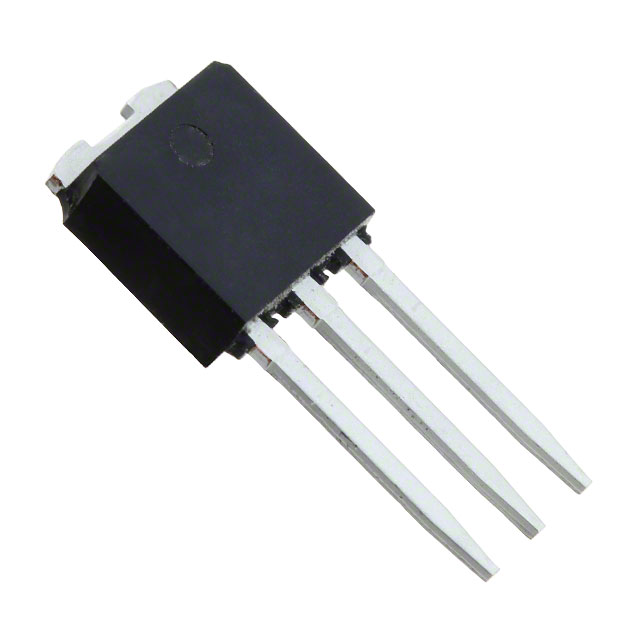

| Part Number | STU12N60M2 | STU13N60M2 | STU16N60M2 | STU10N60M2 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) | 11A (Tc) | 12A (Tc) | 7.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 450mOhm @ 4.5A, 10V | 380mOhm @ 5.5A, 10V | 320mOhm @ 6A, 10V | 600mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 16 nC @ 10 V | 17 nC @ 10 V | 19 nC @ 10 V | 13.5 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 538 pF @ 100 V | 580 pF @ 100 V | 700 pF @ 100 V | 400 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 85W (Tc) | 110W (Tc) | 110W (Tc) | 85W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-251 (IPAK) | TO-251 (IPAK) | TO-251 (IPAK) | TO-251 (IPAK) |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
