| Part Number | STTH806DIRG | STTH8R06DIRG | STTH8L06DIRG |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 8A | 8A | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.85 V @ 8 A | 2.9 V @ 8 A | 1.3 V @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns | 45 ns | 105 ns |
| Current - Reverse Leakage @ Vr | 8 µA @ 600 V | 30 µA @ 600 V | 8 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |

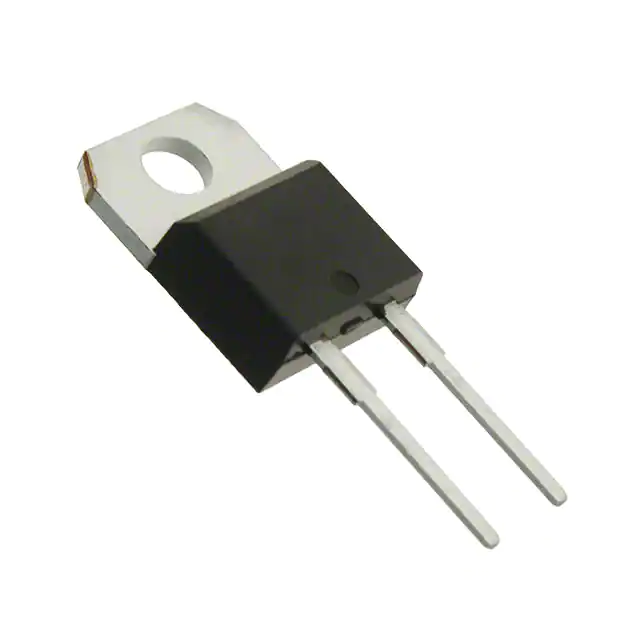

| Package / Case | TO-220-2 Insulated, TO-220AC | TO-220-2 Insulated, TO-220AC | TO-220-2 Insulated, TO-220AC |
| Supplier Device Package | TO-220AC ins | TO-220AC ins | TO-220AC ins |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) |
