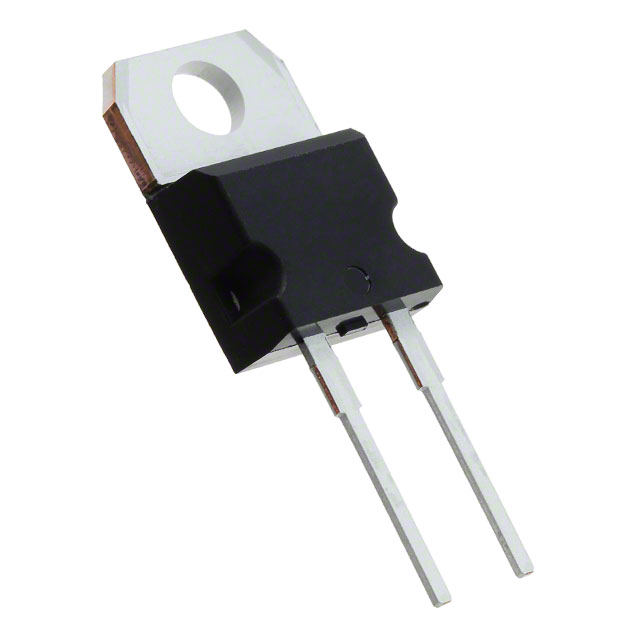

STMicroelectronics-STTH806D - Diodes - Rectifiers - Single Product Specifications and Latest Quotes | Izzition

Similar Products

Part Number	STTH806D	STTH8R06D	STTH8L06D	STTH8S06D	STTH806G	STTH506D	STTH802D	STTH803D
Manufacturer	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Product Status	Active	Active	Active	Active	Obsolete	Active	Active	Active
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	600 V	600 V	600 V	600 V	600 V	600 V	200 V	300 V
Current - Average Rectified (Io)	8A	8A	8A	8A	8A	5A	8A	8A
Voltage - Forward (Vf) (Max) @ If	1.85 V @ 8 A	2.9 V @ 8 A	1.3 V @ 8 A	3.4 V @ 8 A	1.85 V @ 8 A	1.85 V @ 5 A	1.05 V @ 8 A	1.25 V @ 8 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	55 ns	45 ns	105 ns	18 ns	55 ns	50 ns	30 ns	35 ns
Current - Reverse Leakage @ Vr	8 µA @ 600 V	30 µA @ 600 V	8 µA @ 600 V	20 µA @ 600 V	8 µA @ 600 V	5 µA @ 600 V	6 µA @ 200 V	20 µA @ 300 V
Capacitance @ Vr, F	-	-	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Surface Mount	Through Hole	Through Hole	Through Hole
Package / Case	TO-220-2	TO-220-2	TO-220-2	TO-220-2	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	TO-220-2	TO-220-2	TO-220-2
Supplier Device Package	TO-220AC	TO-220AC	TO-220AC	TO-220AC	D2PAK	TO-220AC	TO-220AC	TO-220AC
Operating Temperature - Junction	175°C (Max)	175°C (Max)	175°C (Max)	175°C (Max)	175°C (Max)	175°C (Max)	175°C (Max)	175°C (Max)
