Please send RFQ , we will respond immediately.

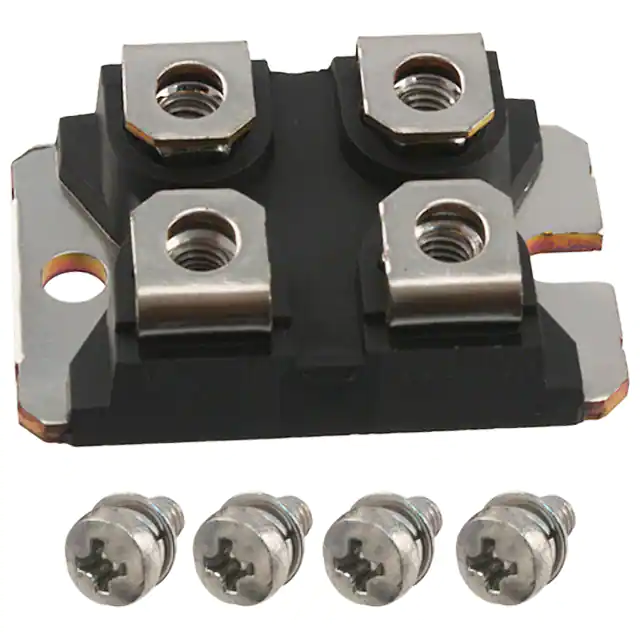

| Part Number | STTH6112TV1 | STTH6112TV2 | STTH6102TV1 | STTH6110TV1 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Diode Configuration | 2 Independent | 2 Independent | 2 Independent | 2 Independent |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V | 200 V | 1000 V |
| Current - Average Rectified (Io) (per Diode) | 30A | 30A | 30A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 2.25 V @ 30 A | 2.25 V @ 30 A | 1.05 V @ 30 A | 2 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 115 ns | 115 ns | 30 ns | 100 ns |
| Current - Reverse Leakage @ Vr | 20 µA @ 1200 V | 20 µA @ 1200 V | 50 µA @ 200 V | 15 µA @ 1000 V |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | ISOTOP | ISOTOP | ISOTOP | ISOTOP |
| Supplier Device Package | ISOTOP® | ISOTOP® | ISOTOP® | ISOTOP® |
