Please send RFQ , we will respond immediately.
| Part Number | STTH60W03CW | STTH30W03CW | STTH50W03CW | STTH6003CW | STTH60SW03CW | STTH60W02CW |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete | Active | Active | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V | 300 V | 300 V | 300 V | 300 V | 200 V |
| Current - Average Rectified (Io) (per Diode) | 30A | 15A | 25A | 30A | 30A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.45 V @ 30 A | 1.4 V @ 15 A | 1.5 V @ 25 A | 1.25 V @ 30 A | 1.25 V @ 30 A | 1.15 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns | 20 ns | 27 ns | 55 ns | 27 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 20 µA @ 300 V | 10 µA @ 300 V | 15 µA @ 300 V | 60 µA @ 300 V | 15 µA @ 300 V | 10 µA @ 200 V |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

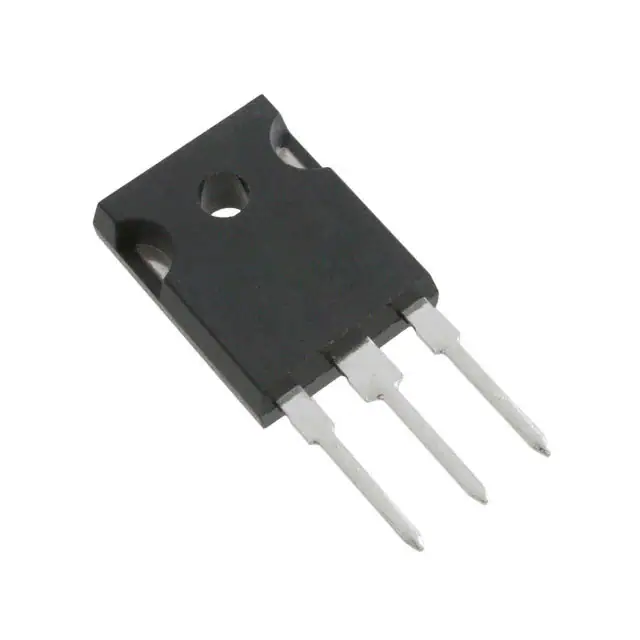

| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 | TO-247 | TO-247 | TO-247-3 | TO-247-3 | TO-247 |
