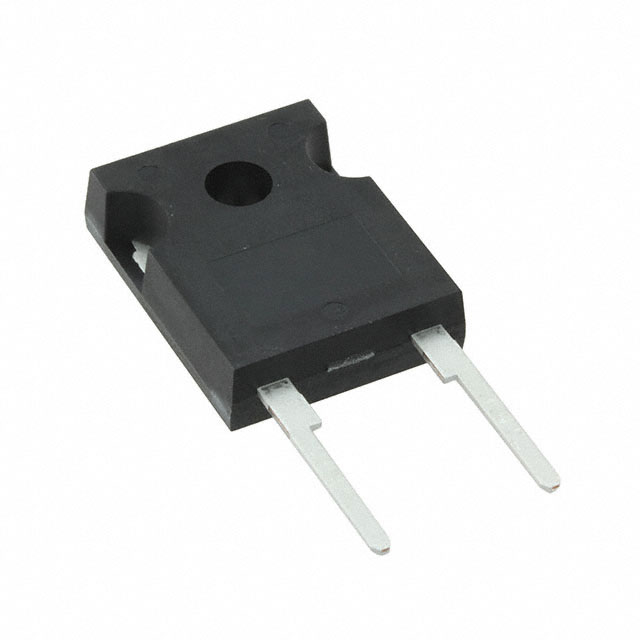

| Part Number | STTH60L06W | STTH6006W | STTH60L04W |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 400 V |
| Current - Average Rectified (Io) | 60A | 60A | 60A |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 60 A | 1.85 V @ 60 A | 1.2 V @ 60 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 105 ns | 85 ns | 90 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 600 V | 50 µA @ 600 V | 50 µA @ 400 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-247-2 (Straight Leads) | DO-247-2 (Straight Leads) | DO-247-2 (Straight Leads) |
| Supplier Device Package | DO-247 | DO-247 | DO-247 |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) |
