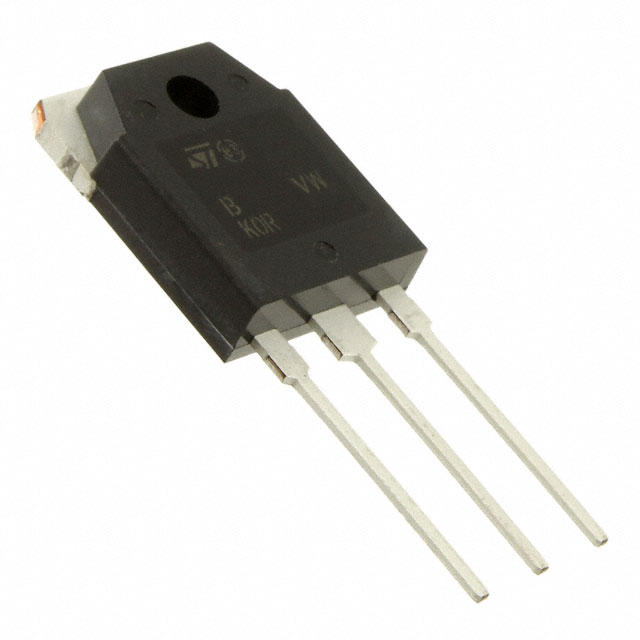

| Part Number | STTH60AC06CP | STTH60AC06CPF | STTH60AC06CW | STTH30AC06CP |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Active | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) (per Diode) | 30A | 30A | 30A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V @ 30 A | 1.75 V @ 30 A | 1.75 V @ 30 A | 1.95 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 40 ns | 40 ns | 40 ns | 55 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V | 10 µA @ 600 V | 10 µA @ 600 V | 10 µA @ 600 V |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 | TO-3P-3 Full Pack | TO-247-3 | TO-3PF |
| Supplier Device Package | TO-3P | TO-3PF | TO-247 | TO-3PF |
