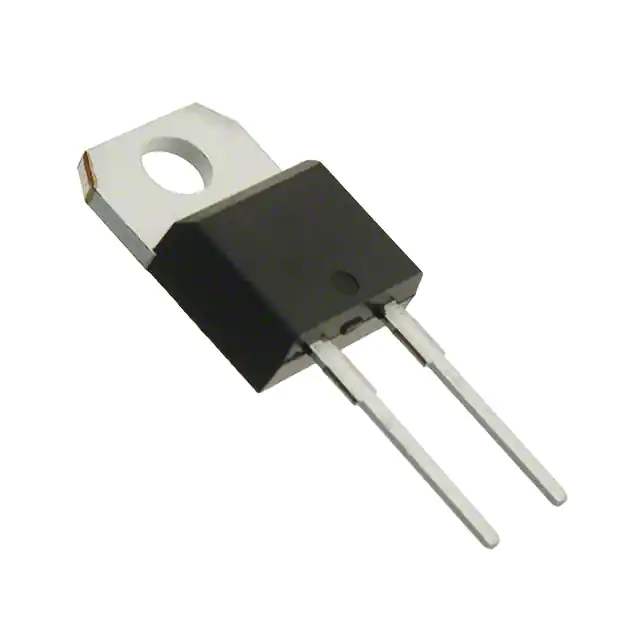

| Part Number | STTH5L06D | STTH8L06D | STTH5R06D | STTH506D | STTH5L06 | STTH5L06B |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 5A | 8A | 5A | 5A | 5A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 5 A | 1.3 V @ 8 A | 2.9 V @ 5 A | 1.85 V @ 5 A | 1.3 V @ 5 A | 1.3 V @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 95 ns | 105 ns | 40 ns | 50 ns | 95 ns | 95 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V | 8 µA @ 600 V | 20 µA @ 600 V | 5 µA @ 600 V | 5 µA @ 600 V | 5 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | DO-201AD, Axial | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-220AC | TO-220AC | TO-220AC | TO-220AC | DO-201AD | DPAK |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
