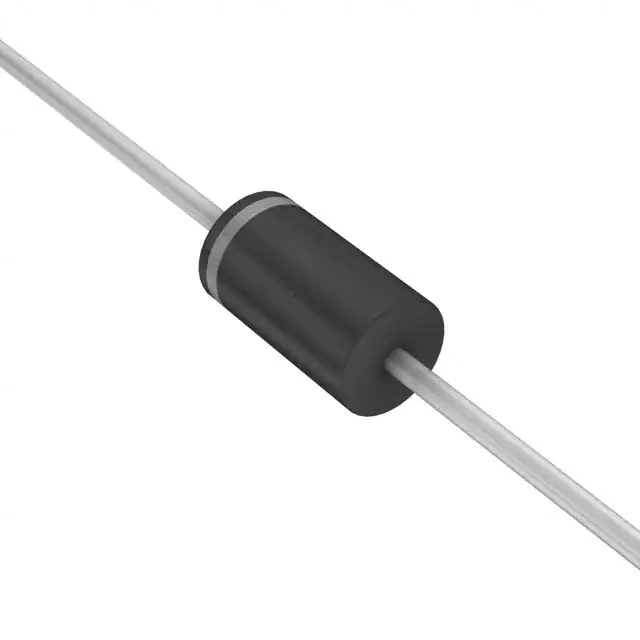

| Part Number | STTH5L06 | STTH5L06D | STTH5L06B | STTH3L06 | STTH4L06 |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 5A | 5A | 5A | 3A | 4A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 5 A | 1.3 V @ 5 A | 1.3 V @ 5 A | 1.3 V @ 3 A | 1.3 V @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 95 ns | 95 ns | 95 ns | 85 ns | 75 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V | 5 µA @ 600 V | 5 µA @ 600 V | 3 µA @ 600 V | 3 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | DO-201AD, Axial | TO-220-2 | TO-252-3, DPak (2 Leads + Tab), SC-63 | DO-201AD, Axial | DO-201AD, Axial |
| Supplier Device Package | DO-201AD | TO-220AC | DPAK | DO-201AD | DO-201AD |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
