| Part Number | STTH3R06UFY | STTH2R06UFY | STTH3L06UFY |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 3A | 2A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.9 V @ 3 A | 1.9 V @ 2 A | 1.4 V @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 85 ns | 70 ns |
| Current - Reverse Leakage @ Vr | 3 µA @ 600 V | 2 µA @ 600 V | 3 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

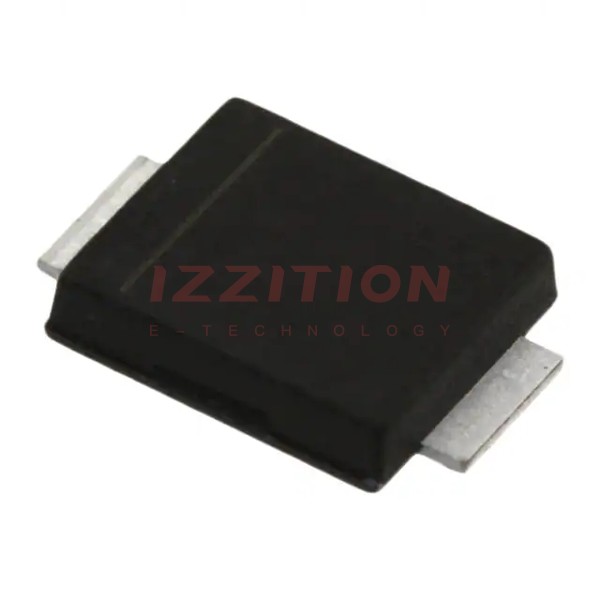

| Package / Case | DO-221AA, SMB Flat Leads | DO-221AA, SMB Flat Leads | DO-221AA, SMB Flat Leads |
| Supplier Device Package | SMBflat | SMBflat | SMBflat |
| Operating Temperature - Junction | -40°C ~ 175°C | -40°C ~ 175°C | -40°C ~ 175°C |
