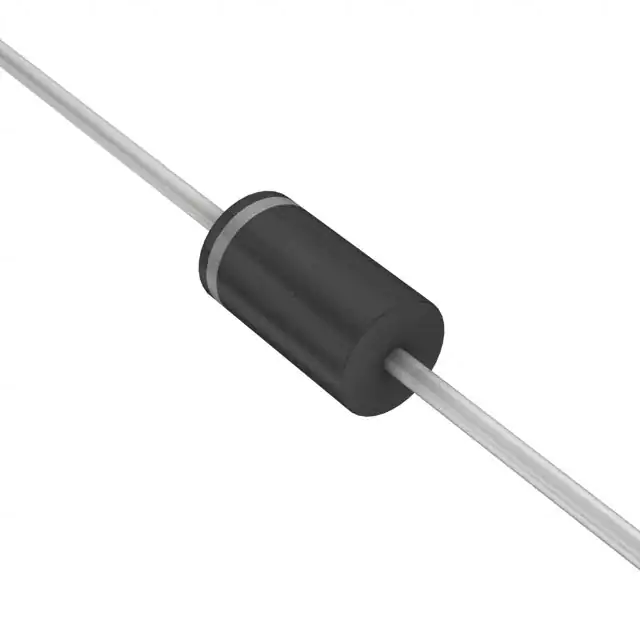

| Part Number | STTH3R04 | STTH3R04U | STTH3R04S | STTH3R06 | STTH3R04Q | STTH3R02 |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 400 V | 400 V | 600 V | 400 V | 200 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A | 3A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 3 A | 1.5 V @ 3 A | 1.5 V @ 3 A | 1.7 V @ 3 A | 1.5 V @ 3 A | 1 V @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns | 35 ns | 35 ns | 35 ns | 35 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V | 5 µA @ 400 V | 5 µA @ 400 V | 3 µA @ 600 V | 5 µA @ 400 V | 3 µA @ 200 V |
| Capacitance @ Vr, F | - | - | - | - | - | - |
| Mounting Type | Through Hole | Surface Mount | Surface Mount | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AD, Axial | DO-214AA, SMB | DO-214AB, SMC | DO-201AD, Axial | DO-204AC, DO-15, Axial | DO-201AD, Axial |
| Supplier Device Package | DO-201AD | SMB | SMC | DO-201AD | DO-15 | DO-201AD |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
