STMicroelectronics-STTH31AC06SPF - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	30A
Voltage - Forward (Vf) (Max) @ If:	2 V @ 30 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	65 ns
Current - Reverse Leakage @ Vr:	10 µA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole

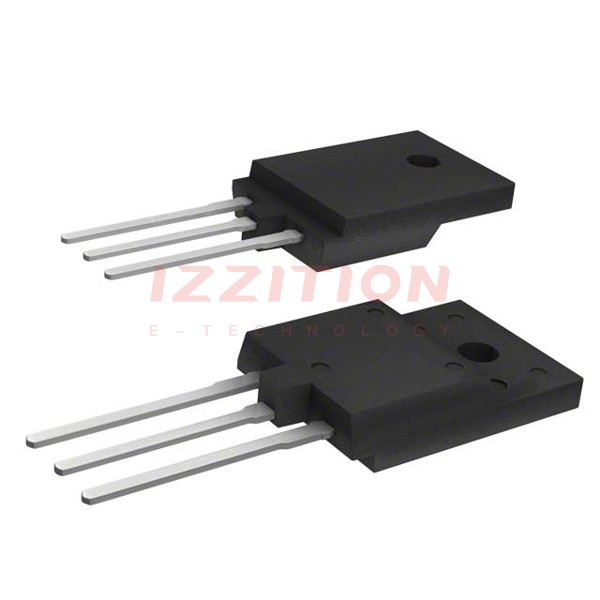

Package / Case:	TO-3P-3 Full Pack
Supplier Device Package:	TO-3PF
Operating Temperature - Junction:	175°C (Max)

STMicroelectronics STTH31AC06SPF
