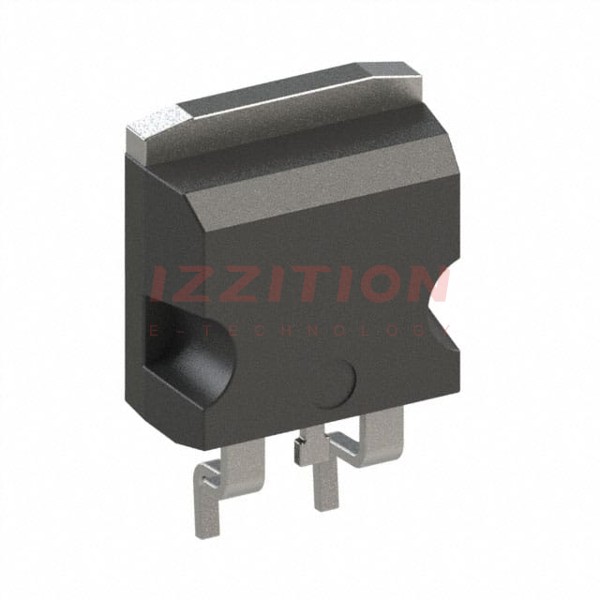

| Part Number | STTH30RQ06G2-TR | STTH30RQ06GY-TR | STTH30RQ06G2Y-TR | STTH30RQ06G-TR |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 30A | 30A | 30A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 2.95 V @ 30 A | 2.95 V @ 30 A | 2.95 V @ 30 A | 2.95 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns | 55 ns | 55 ns | 55 ns |
| Current - Reverse Leakage @ Vr | 40 µA @ 600 V | 40 µA @ 600 V | 40 µA @ 600 V | 40 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK HV | D²PAK | D2PAK HV | D²PAK |
| Operating Temperature - Junction | 175°C (Max) | -40°C ~ 175°C | -40°C ~ 175°C | 175°C (Max) |
