STMicroelectronics-STTH3010PI - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1000 V
Current - Average Rectified (Io):	30A
Voltage - Forward (Vf) (Max) @ If:	2 V @ 30 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	100 ns
Current - Reverse Leakage @ Vr:	15 µA @ 1000 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	DOP3I-2 Insulated (Straight Leads)
Supplier Device Package:	DOP3I
Operating Temperature - Junction:	175°C (Max)

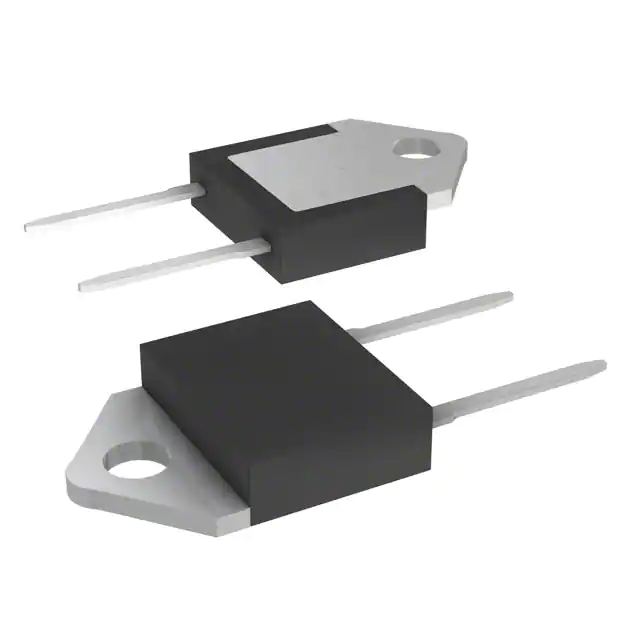

STMicroelectronics STTH3010PI
