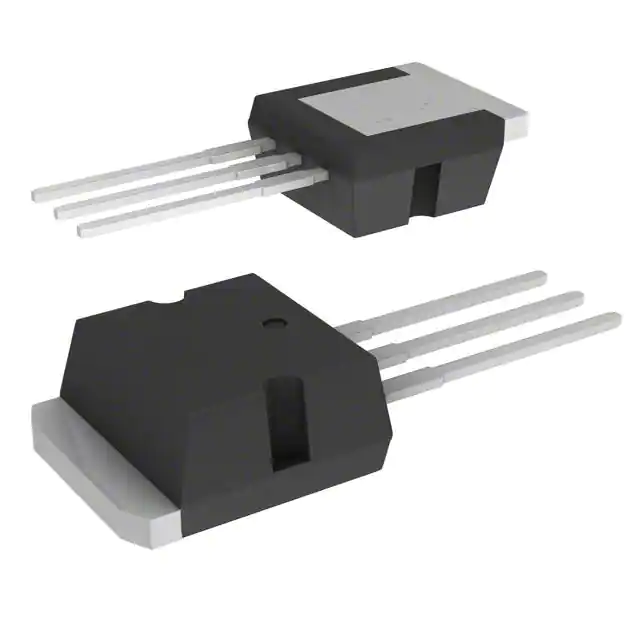

| Part Number | STTH3002CR | STTH3002CW | STTH3002CT | STTH1002CR | STTH2002CR | STTH3002CG |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Active | Active | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 200 V | 200 V | 200 V | 200 V | 200 V |
| Current - Average Rectified (Io) (per Diode) | 15A | 15A | 15A | 8A | 15A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 15 A | 1.05 V @ 15 A | 1.05 V @ 15 A | 1.1 V @ 5 A | 1.1 V @ 10 A | 1.05 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 22 ns | 22 ns | 22 ns | 25 ns | 27 ns | 22 ns |
| Current - Reverse Leakage @ Vr | 20 µA @ 200 V | 20 µA @ 200 V | 20 µA @ 200 V | 5 µA @ 200 V | 10 µA @ 200 V | 20 µA @ 200 V |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-247-3 | TO-220-3 | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | I2PAK | TO-247-3 | TO-220 | I2PAK | I2PAK | D2PAK |
