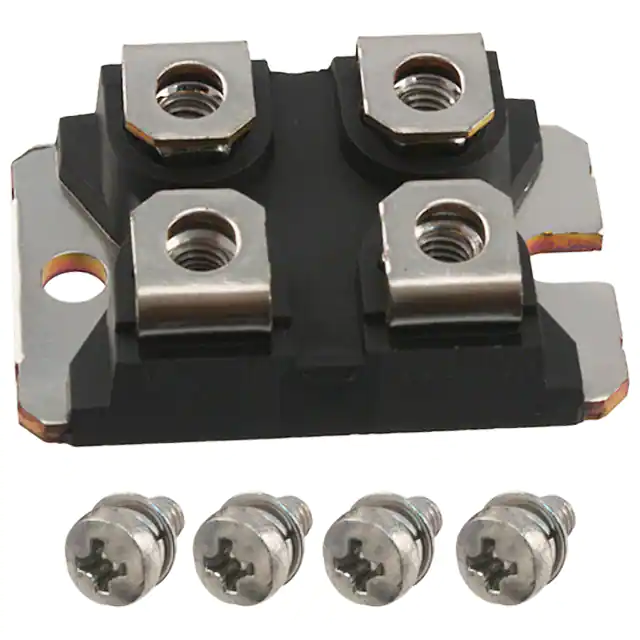

| Part Number | STTH200L04TV1 | STTH200R04TV1 | STTH200L06TV1 | STTH200W04TV1 | STTH20004TV1 |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Obsolete | Active |
| Diode Configuration | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 400 V | 600 V | 400 V | 400 V |
| Current - Average Rectified (Io) (per Diode) | 120A | 100A | 120A | 100A | 120A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 A | 1.35 V @ 100 A | 1.55 V @ 100 A | 1.55 V @ 100 A | 1.2 V @ 100 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 100 ns | 100 ns | 120 ns | 55 ns | 100 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 400 V | 80 µA @ 400 V | 100 µA @ 600 V | 40 µA @ 400 V | 100 µA @ 400 V |
| Operating Temperature - Junction | 150°C (Max) | -55°C ~ 150°C | 150°C (Max) | 150°C (Max) | 150°C (Max) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | ISOTOP | ISOTOP | ISOTOP | SOT-227-4, miniBLOC | ISOTOP |
| Supplier Device Package | ISOTOP® | ISOTOP® | ISOTOP® | ISOTOP | ISOTOP® |
