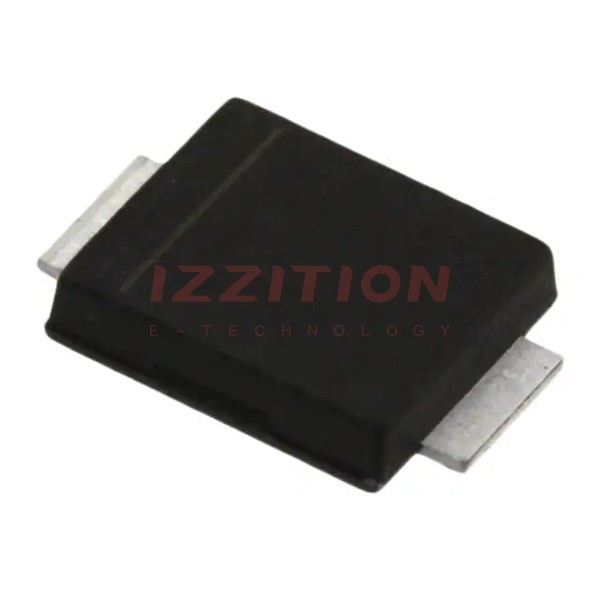

| Part Number | STTH1R06UFY | STTH2R06UFY | STTH1L06UFY | STTH1R06AFY |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 1A | 2A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.9 V @ 1 A | 1.9 V @ 2 A | 1.4 V @ 1 A | 1.9 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns | 85 ns | 60 ns | 45 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 600 V | 2 µA @ 600 V | 1 µA @ 600 V | 1 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AA, SMB Flat Leads | DO-221AA, SMB Flat Leads | DO-221AA, SMB Flat Leads | SOD-128 |
| Supplier Device Package | SMBflat | SMBflat | SMBflat | SOD128Flat |
| Operating Temperature - Junction | -40°C ~ 175°C | -40°C ~ 175°C | -40°C ~ 175°C | -40°C ~ 175°C |
