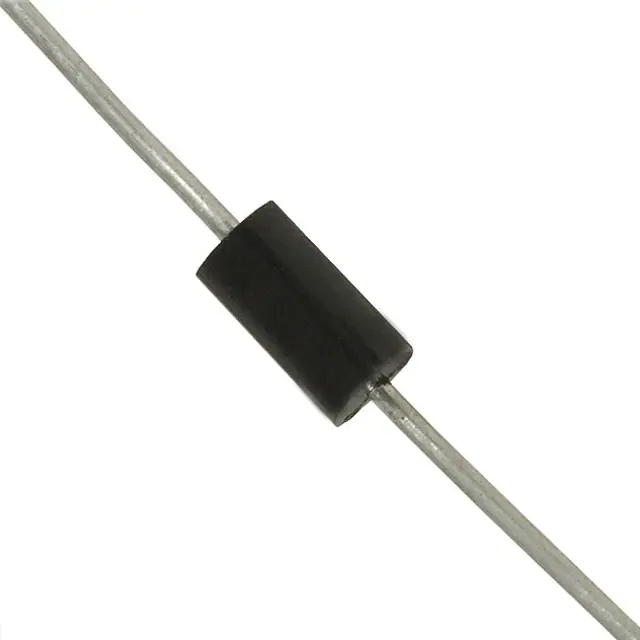

| Part Number | STTH1R04Q | STTH1R04U | STTH1R02Q | STTH1R04 | STTH1R04A |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Active | Obsolete | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 400 V | 200 V | 400 V | 400 V |
| Current - Average Rectified (Io) | 1A | 1A | 1.5A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1 V @ 1.5 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns | 30 ns | 30 ns | 30 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V | 5 µA @ 400 V | 3 µA @ 200 V | 5 µA @ 400 V | 5 µA @ 400 V |
| Capacitance @ Vr, F | - | - | - | - | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Surface Mount |
| Package / Case | DO-204AC, DO-15, Axial | DO-214AA, SMB | DO-204AC, DO-15, Axial | DO-204AL, DO-41, Axial | DO-214AC, SMA |
| Supplier Device Package | DO-15 (DO-204AC) | SMB | DO-15 | DO-41 | SMA |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
