| Part Number | STTH15RQ06G2Y-TR | STTH15RQ06GY-TR | STTH15RQ06G2-TR |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 15A | 15A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 2.95 V @ 15 A | 2.95 V @ 15 A | 2.95 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 50 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 20 µA @ 600 V | 20 µA @ 600 V | 20 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

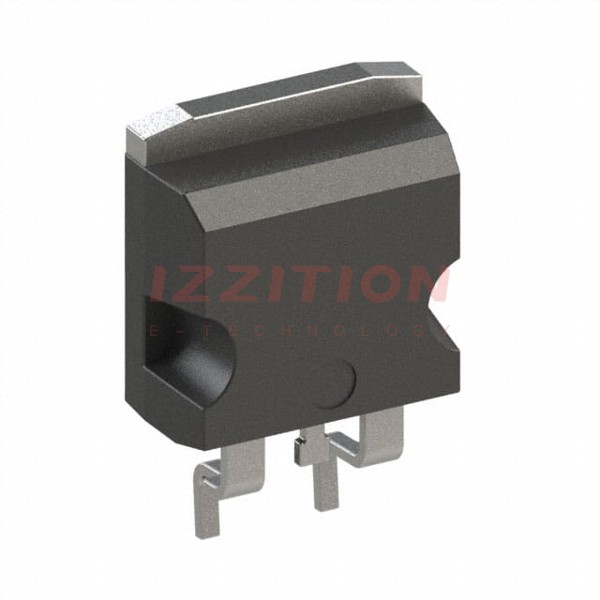

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK HV | D²PAK | D2PAK HV |
| Operating Temperature - Junction | -40°C ~ 175°C | -40°C ~ 175°C | 175°C (Max) |
