| Part Number | STTH15R06FP | STTH12R06FP | STTH15L06FP |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 15A | 12A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 2.9 V @ 15 A | 2.9 V @ 12 A | 1.55 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 45 ns | 85 ns |
| Current - Reverse Leakage @ Vr | 60 µA @ 600 V | 45 µA @ 600 V | 15 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |

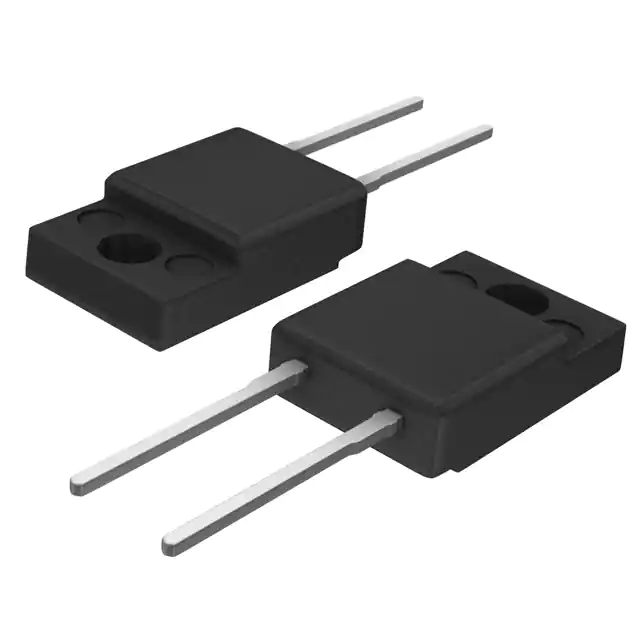

| Package / Case | TO-220-2 Full Pack, Isolated Tab | TO-220-2 Full Pack, Isolated Tab | TO-220-2 Full Pack, Isolated Tab |
| Supplier Device Package | TO-220FPAC | TO-220FPAC | TO-220FPAC |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) |
