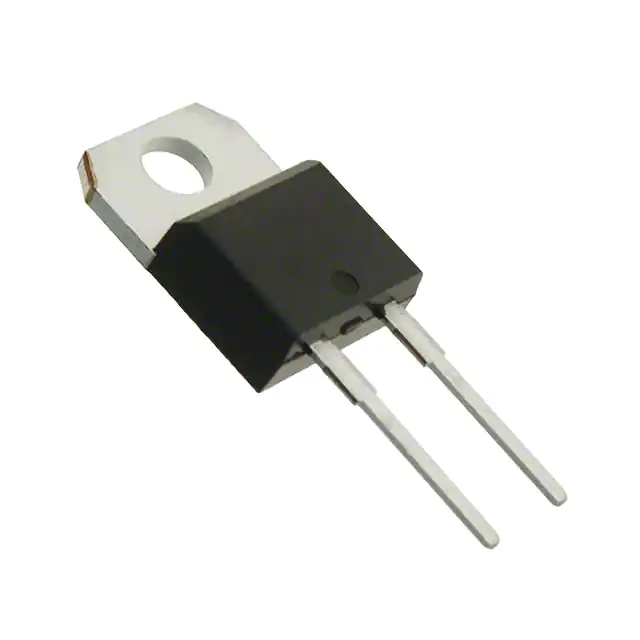

| Part Number | STTH15L06D | STTH15R06D | STTH15L06G |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 15A | 15A | 20A |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 15 A | 2.9 V @ 15 A | 1.55 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 85 ns | 50 ns | 85 ns |
| Current - Reverse Leakage @ Vr | 15 µA @ 600 V | 60 µA @ 600 V | 15 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-220-2 | TO-220-2 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-220AC | TO-220AC | D2PAK |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) |
