STMicroelectronics-STTH1506TPI - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Series Connection
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io) (per Diode):	15A
Voltage - Forward (Vf) (Max) @ If:	3.6 V @ 15 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	35 ns
Current - Reverse Leakage @ Vr:	20 µA @ 600 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Through Hole
Package / Case:	TOP-3 Insulated
Supplier Device Package:	TOP-3I

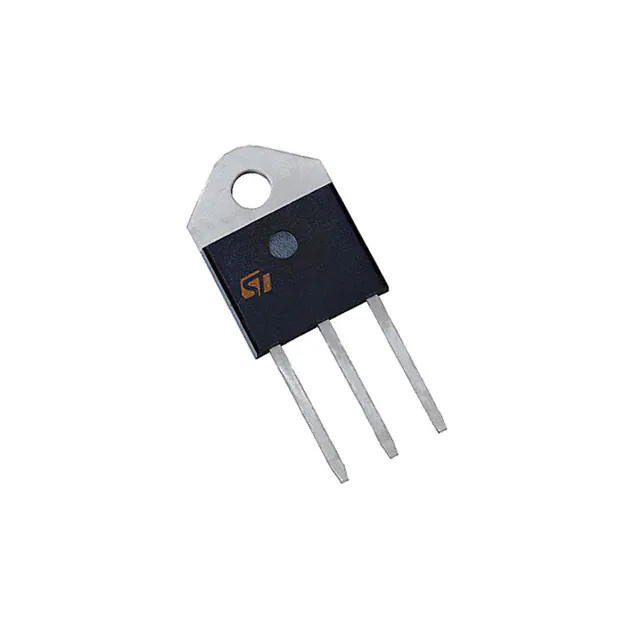

STMicroelectronics STTH1506TPI
