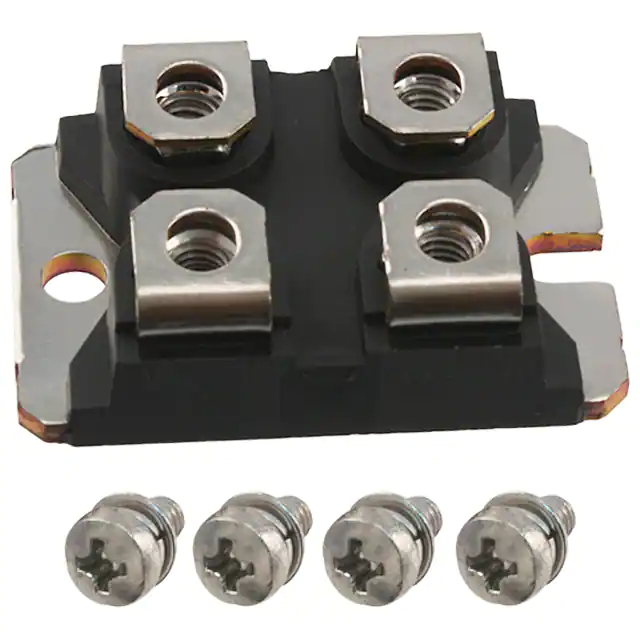

| Part Number | STTH12004TV1 | STTH120R04TV1 | STTH120L04TV1 | STTH12002TV1 | STTH12003TV1 |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active |
| Diode Configuration | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 400 V | 400 V | 200 V | 300 V |
| Current - Average Rectified (Io) (per Diode) | 60A | 60A | 60A | 60A | 60A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 60 A | 1.5 V @ 60 A | 1.2 V @ 60 A | 1.05 V @ 60 A | 1.25 V @ 60 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 90 ns | 80 ns | 90 ns | 43 ns | 70 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 400 V | 60 µA @ 400 V | 50 µA @ 400 V | 50 µA @ 200 V | 120 µA @ 300 V |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | ISOTOP | ISOTOP | ISOTOP | ISOTOP | ISOTOP |
| Supplier Device Package | ISOTOP® | ISOTOP® | ISOTOP® | ISOTOP® | ISOTOP® |
