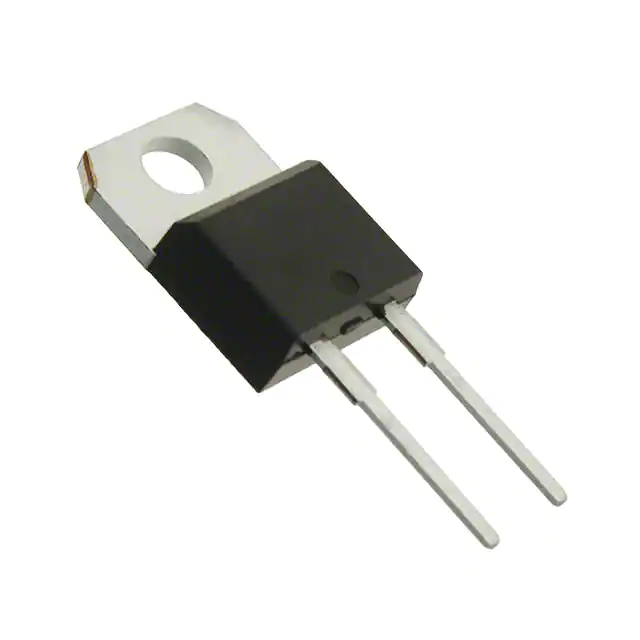

| Part Number | STTH10R04D | STTH20R04D | STTH10R04G | STTH10R04B |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 400 V | 400 V | 400 V |
| Current - Average Rectified (Io) | 10A | 20A | 10A | 10A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 10 A | 1.7 V @ 20 A | 1.7 V @ 10 A | 1.7 V @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 40 ns | 45 ns | 40 ns | 40 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V | 20 µA @ 400 V | 10 µA @ 400 V | 10 µA @ 400 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Surface Mount |
| Package / Case | TO-220-2 | TO-220-2 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-220AC | TO-220AC | D2PAK | DPAK |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
