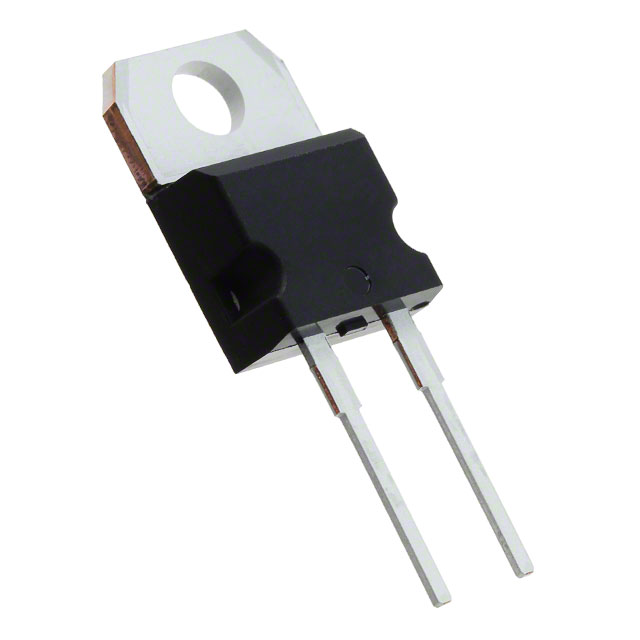

| Part Number | STTA1206D | STTA1206G |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V |
| Current - Average Rectified (Io) | 12A | 12A |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V @ 12 A | 1.75 V @ 12 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns | 55 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V | 100 µA @ 600 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Through Hole | Surface Mount |
| Package / Case | TO-220-2 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-220AC | D2PAK |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) |
