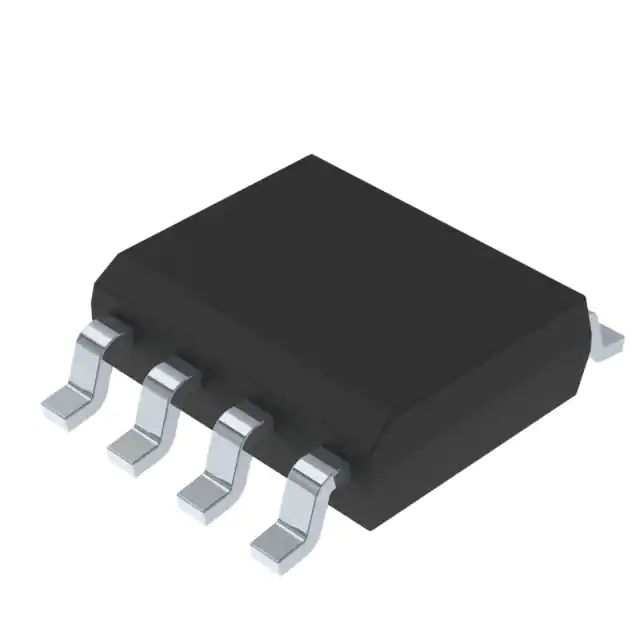

| Part Number | STS6PF30L | STS7PF30L | STS5PF30L |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) | 7A (Tc) | 5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 3A, 10V | 21mOhm @ 3.5A, 10V | 55mOhm @ 2.5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 5 V | 38 nC @ 4.5 V | 16 nC @ 5 V |
| Vgs (Max) | ±16V | ±20V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 1670 pF @ 25 V | 2600 pF @ 25 V | 1350 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.5W (Tc) | 2.5W (Tc) | 2.5W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
