STMicroelectronics-STPSC8H065G2Y-TR - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max):	650 V
Current - Average Rectified (Io):	8A
Voltage - Forward (Vf) (Max) @ If:	1.65 V @ 8 A
Speed:	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr):	0 ns
Current - Reverse Leakage @ Vr:	80 µA @ 650 V
Capacitance @ Vr, F:	414pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK HV
Operating Temperature - Junction:	-40°C ~ 175°C

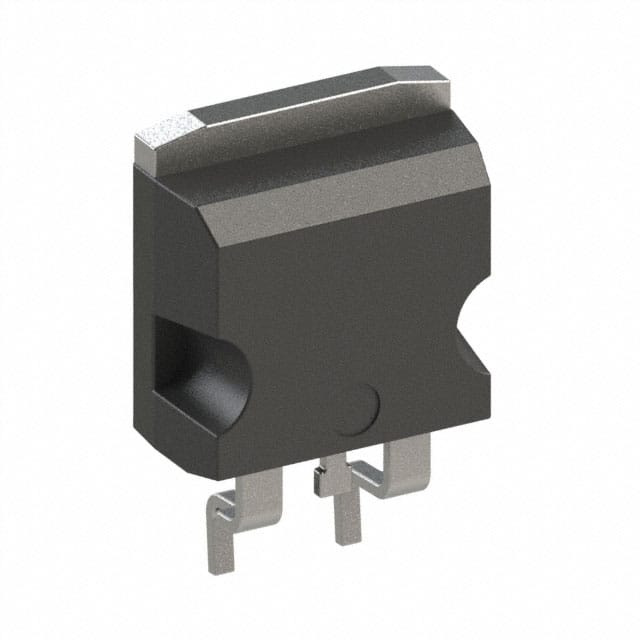

STMicroelectronics STPSC8H065G2Y-TR
