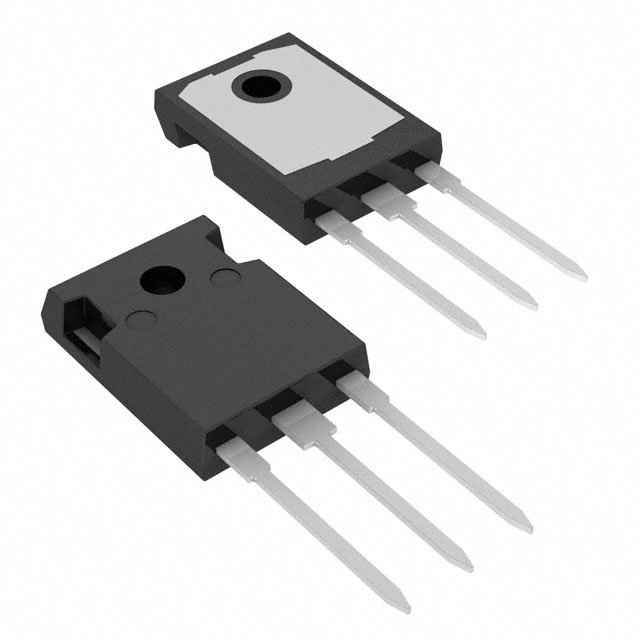

STMicroelectronics-STPSC40065CW - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Common Cathode
Diode Type:	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max):	650 V
Current - Average Rectified (Io) (per Diode):	20A
Voltage - Forward (Vf) (Max) @ If:	1.7 V @ 20 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	300 µA @ 600 V
Operating Temperature - Junction:	-40°C ~ 175°C
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247-3

STMicroelectronics STPSC40065CW
