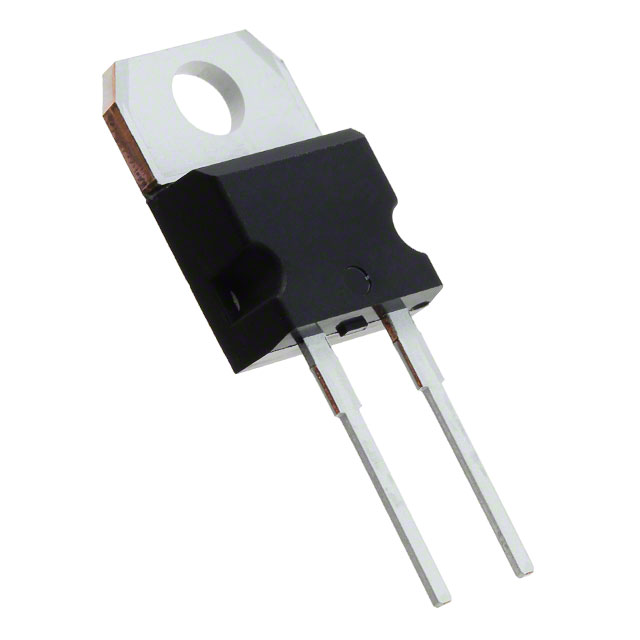

| Part Number | STPSC20H12D | STPSC2H12D | STPSC20H12DY | STPSC10H12D |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 20A | 2A | 20A | 10A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 20 A | 1.5 V @ 2 A | 1.5 V @ 20 A | 1.5 V @ 10 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 120 µA @ 1200 V | 12 µA @ 1200 V | 120 µA @ 1200 V | 60 µA @ 1200 V |
| Capacitance @ Vr, F | 1650pF @ 0V, 1MHz | 190pF @ 0V, 1MHz | 1650pF @ 0V, 1MHz | 725pF @ 0V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 |
| Supplier Device Package | TO-220AC | TO-220AC | TO-220AC | TO-220AC |
| Operating Temperature - Junction | -40°C ~ 175°C | -40°C ~ 175°C | -40°C ~ 175°C | -40°C ~ 175°C |
