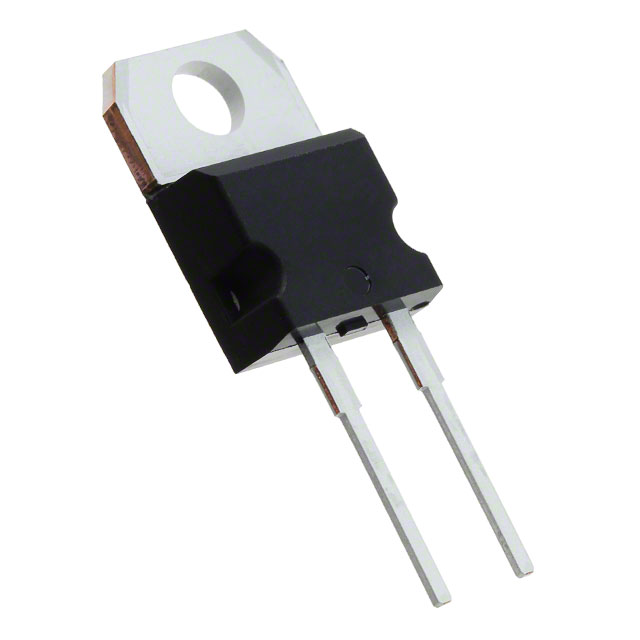

| Part Number | STPSC12C065DY | STPSC12H065DY | STPSC12065DY |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V | 650 V | 650 V |
| Current - Average Rectified (Io) | 12A | 12A | 12A |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V @ 12 A | 1.75 V @ 12 A | 1.45 V @ 12 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | - | - | 0 ns |
| Current - Reverse Leakage @ Vr | 120 µA @ 650 V | 120 µA @ 650 V | 50 µA @ 600 V |
| Capacitance @ Vr, F | 530pF @ 0V, 1MHz | 600pF @ 0V, 1MHz | 750pF @ 0V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-2 | TO-220-2 | TO-220-2 |
| Supplier Device Package | TO-220AC | TO-220AC | TO-220AC |
| Operating Temperature - Junction | -40°C ~ 175°C | -40°C ~ 175°C | -40°C ~ 175°C |
