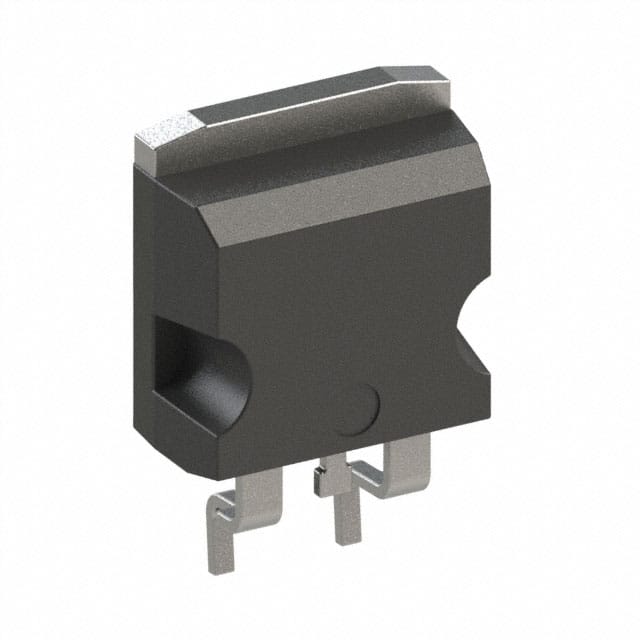

| Part Number | STPSC12065G2Y-TR | STPSC12065GY-TR |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V | 650 V |
| Current - Average Rectified (Io) | 12A | 12A |
| Voltage - Forward (Vf) (Max) @ If | 1.45 V @ 12 A | 1.45 V @ 12 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 150 µA @ 650 V | 50 µA @ 600 V |
| Capacitance @ Vr, F | 750pF @ 0V, 1MHz | 750pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK HV | D²PAK |
| Operating Temperature - Junction | -40°C ~ 175°C | -40°C ~ 175°C |
