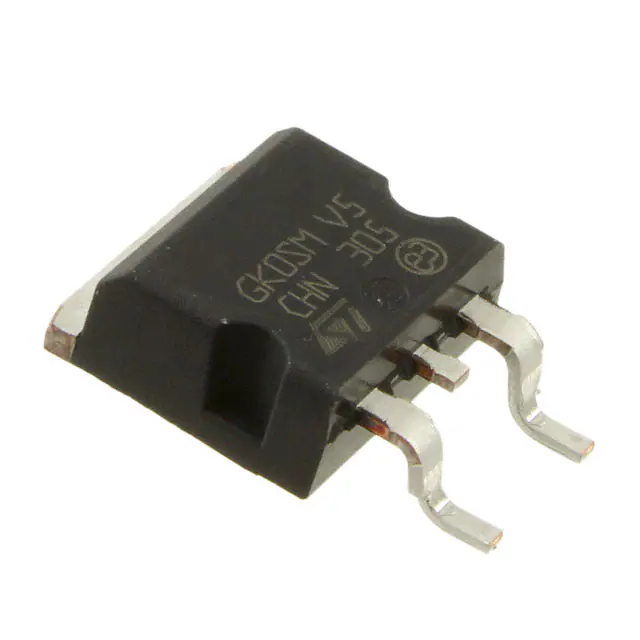

| Part Number | STPS40170CGY-TR | STPS40150CGY-TR | STPS40170CG-TR |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 170 V | 150 V | 170 V |
| Current - Average Rectified (Io) (per Diode) | 20A | 20A | 20A |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 20 A | 920 mV @ 20 A | 920 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 30 µA @ 170 V | 15 µA @ 150 V | 30 µA @ 170 V |
| Operating Temperature - Junction | -40°C ~ 175°C | -40°C ~ 175°C | 175°C (Max) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK | D²PAK | D2PAK |
