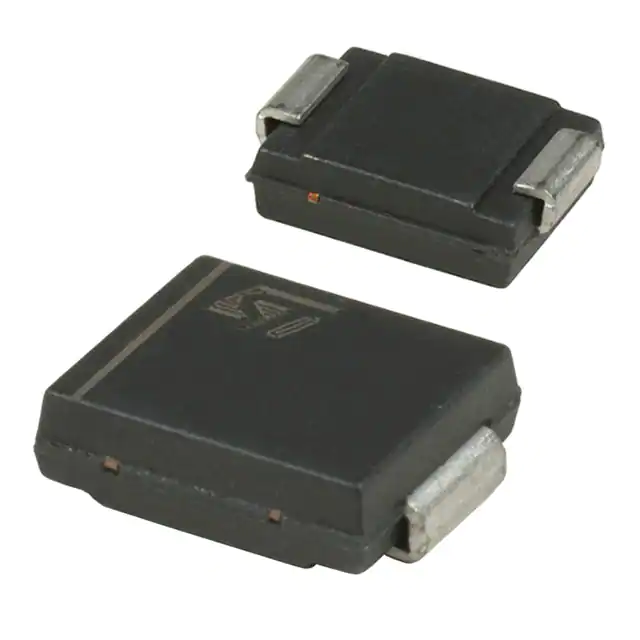

| Part Number | STPS3L60SY | STPS5L60SY | STPS3L60UY | STPS3L40SY | STPS3L60S |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 60 V | 60 V | 40 V | 60 V |
| Current - Average Rectified (Io) | 3A | 5A | 3A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 3 A | 520 mV @ 5 A | 620 mV @ 3 A | 500 mV @ 3 A | 700 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 55 µA @ 60 V | 220 µA @ 60 V | 150 µA @ 60 V | 100 µA @ 40 V | 55 µA @ 60 V |
| Capacitance @ Vr, F | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AA, SMB | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | SMC | SMC | SMB | SMC | SMC |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | 150°C (Max) |
