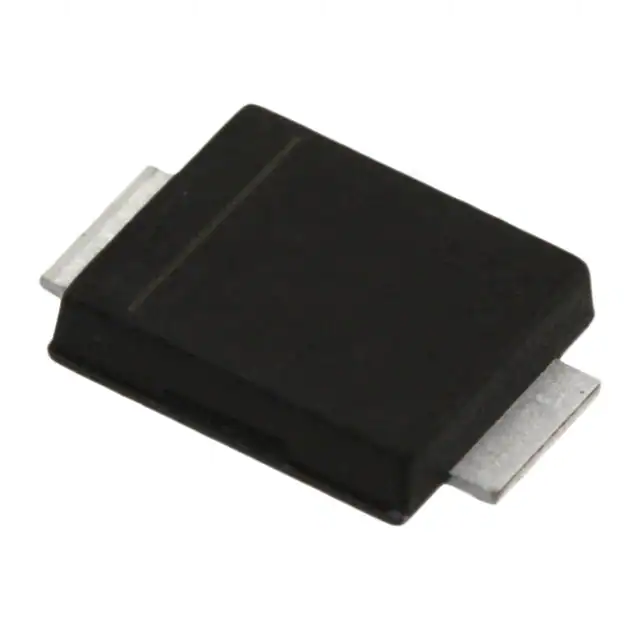

| Part Number | STPS3L40UF | STPS3L60UF | STPS3L40UFN | STPS2L40UF | STPS340UF |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 60 V | 40 V | 40 V | 40 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A | 2A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 3 A | 620 mV @ 3 A | 500 mV @ 3 A | 430 mV @ 2 A | 630 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 40 V | 150 µA @ 60 V | 100 mA @ 40 V | 220 µA @ 40 V | 20 µA @ 40 V |
| Capacitance @ Vr, F | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AA, SMB Flat Leads | DO-221AA, SMB Flat Leads | DO-221AC, SMA Flat Leads | DO-221AA, SMB Flat Leads | DO-221AA, SMB Flat Leads |
| Supplier Device Package | SMBflat | SMBflat | SMAflat Notch | SMBflat | SMBflat |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C | 150°C (Max) | 150°C (Max) |
