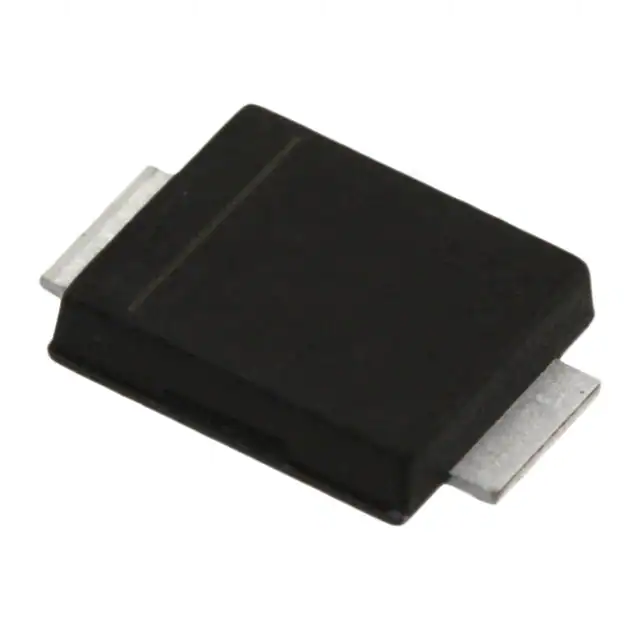

| Part Number | STPS3H100UF | STPS3H100UFY | STPS3H100UFN | STPS2H100UF | STPS3H100AF | STPS3H100U |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A | 2A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 840 mV @ 3 A | 940 mV @ 6 A | 760 mV @ 3 A | 790 mV @ 2 A | 760 mV @ 3 A | 840 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 1 µA @ 100 V | 1 µA @ 100 V | 1.5 mA @ 100 V | 1 µA @ 100 V | 1.5 µA @ 100 V | 1 µA @ 100 V |
| Capacitance @ Vr, F | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AA, SMB Flat Leads | DO-221AA, SMB Flat Leads | DO-221AC, SMA Flat Leads | DO-221AA, SMB Flat Leads | SOD-128 | DO-214AA, SMB |
| Supplier Device Package | SMBflat | SMBflat | SMAflat Notch | SMBflat | SOD128Flat | SMB |
| Operating Temperature - Junction | 175°C (Max) | -40°C ~ 175°C | -40°C ~ 175°C | 175°C (Max) | -40°C ~ 175°C | 175°C (Max) |
