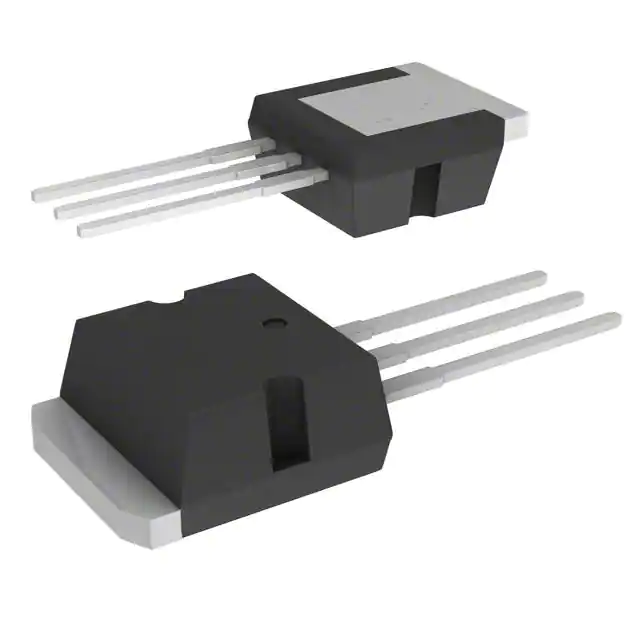

| Part Number | STPS30SM60CR | STPS30SM60CT | STPS30SM80CR | STPS40SM60CR | STPS20SM60CR | STPS30M60CR |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 60 V | 80 V | 60 V | 60 V | 60 V |
| Current - Average Rectified (Io) (per Diode) | 15A | 15A | 15A | 20A | 10A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 625 mV @ 15 A | 625 mV @ 15 A | 790 mV @ 15 A | 625 mV @ 20 A | 645 mV @ 10 A | 590 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 65 µA @ 60 V | 65 µA @ 60 V | 40 µA @ 80 V | 90 µA @ 60 V | 40 µA @ 60 V | 80 µA @ 60 V |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 175°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-220-3 | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Supplier Device Package | I2PAK | TO-220 | I2PAK | I2PAK | I2PAK | I2PAK |
