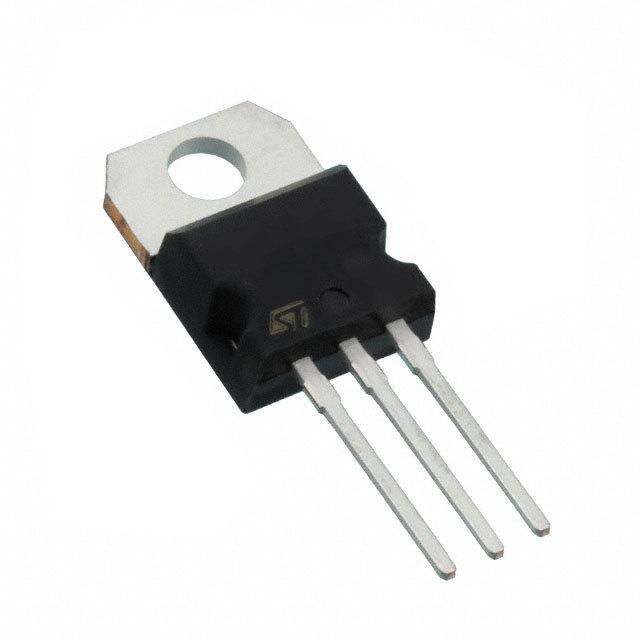

| Part Number | STPS30L60CTN | STPS20L60CTN | STPS30L60CT |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 60 V | 60 V |
| Current - Average Rectified (Io) (per Diode) | 15A | 10A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 15 A | 600 mV @ 10 A | 600 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 480 µA @ 60 V | 350 µA @ 60 V | 480 µA @ 60 V |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220AB Narrow Leads | TO-220AB Narrow Leads | TO-220 |
