Please send RFQ , we will respond immediately.

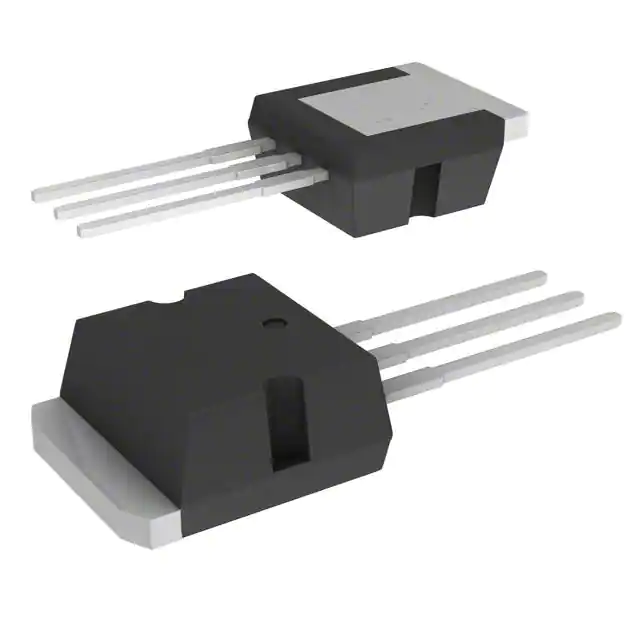

| Part Number | STPS3045CR | STPS3045CT | STPS3045CW | STPS30L45CR | STPS2045CR | STPS3045CG | STPS3045CP |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V | 45 V | 45 V | 45 V | 45 V | 45 V | 45 V |
| Current - Average Rectified (Io) (per Diode) | 15A | 15A | 15A | 15A | 10A | 15A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 570 mV @ 15 A | 570 mV @ 15 A | 570 mV @ 15 A | 550 mV @ 15 A | 570 mV @ 10 A | 570 mV @ 15 A | 570 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 45 V | 200 µA @ 45 V | 200 µA @ 45 V | 400 µA @ 45 V | 100 µA @ 45 V | 200 µA @ 45 V | 200 µA @ 45 V |
| Operating Temperature - Junction | 200°C (Max) | 200°C (Max) | 200°C (Max) | 150°C (Max) | 175°C (Max) | 200°C (Max) | 200°C (Max) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-220-3 | TO-247-3 | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-218-3, TO-218AC |
| Supplier Device Package | I2PAK (TO-262) | TO-220 | TO-247-3 | I2PAK | I2PAK | D2PAK | SOT-93 |
