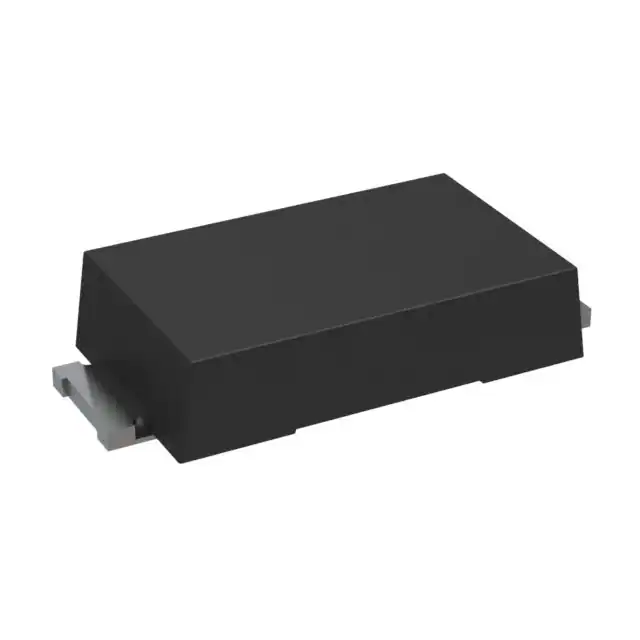

| Part Number | STPS2H100AFN | STPS1H100AFN | STPS2H100AF |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 100 V |
| Current - Average Rectified (Io) | 2A | 1A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 790 mV @ 2 A | 770 mV @ 1 A | 790 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 1 µA @ 100 V | 4 µA @ 100 V | 1 µA @ 100 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAflat Notch | SMAflat Notch | SMAflat |
| Operating Temperature - Junction | 175°C | 175°C | -65°C ~ 175°C |
