STMicroelectronics-STPS240H100TV1Y - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	2 Independent
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io) (per Diode):	120A
Voltage - Forward (Vf) (Max) @ If:	825 mV @ 120 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	90 µA @ 100 V
Operating Temperature - Junction:	-40°C ~ 175°C
Mounting Type:	Chassis Mount
Package / Case:	SOT-227-4, miniBLOC
Supplier Device Package:	ISOTOP

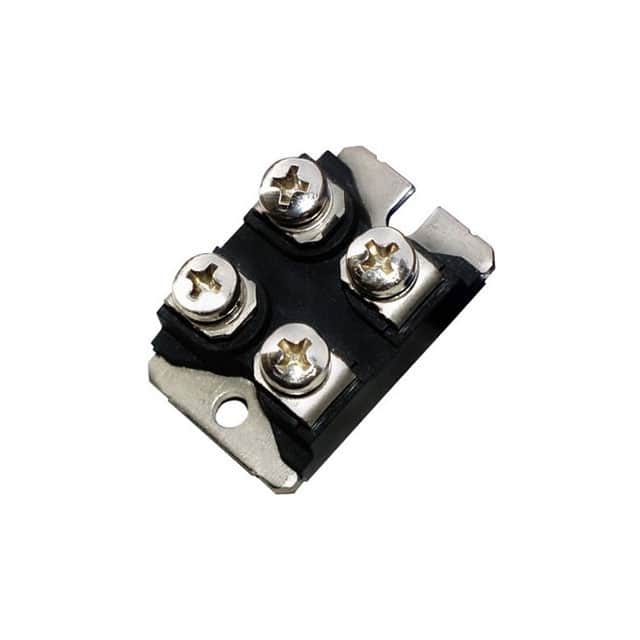

STMicroelectronics STPS240H100TV1Y
